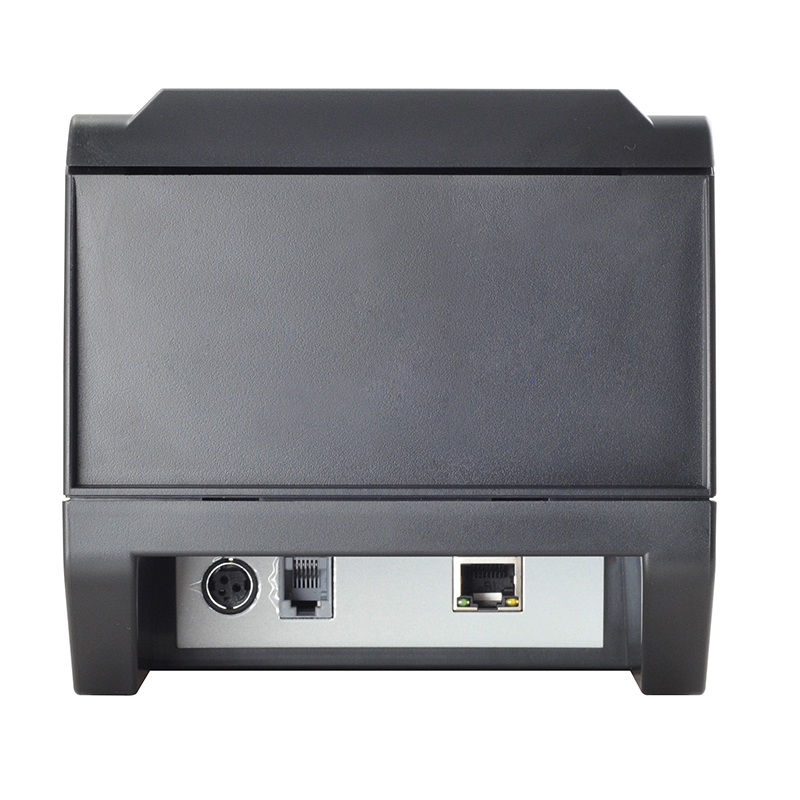

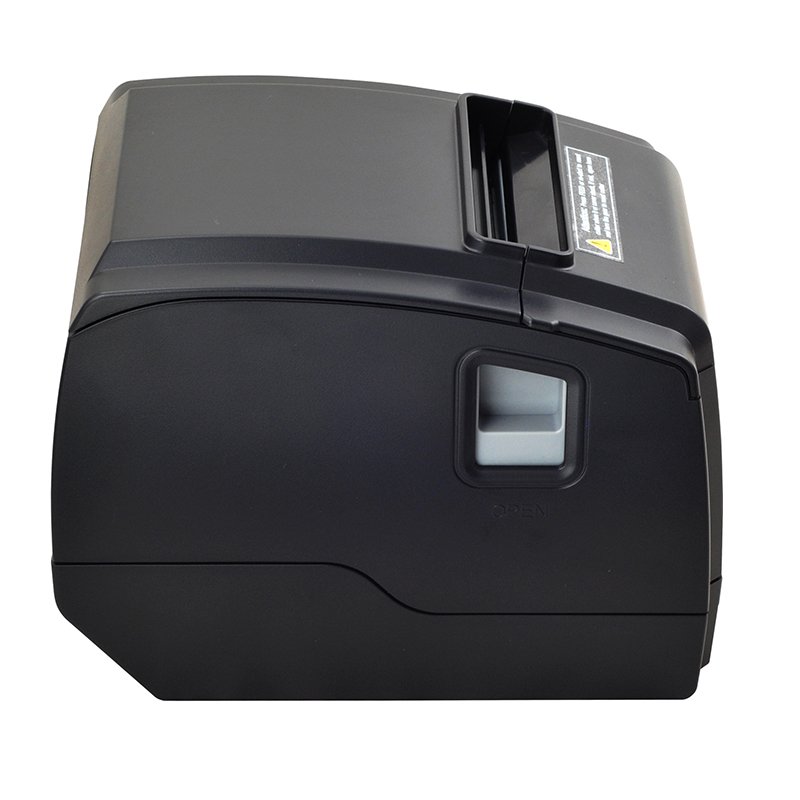

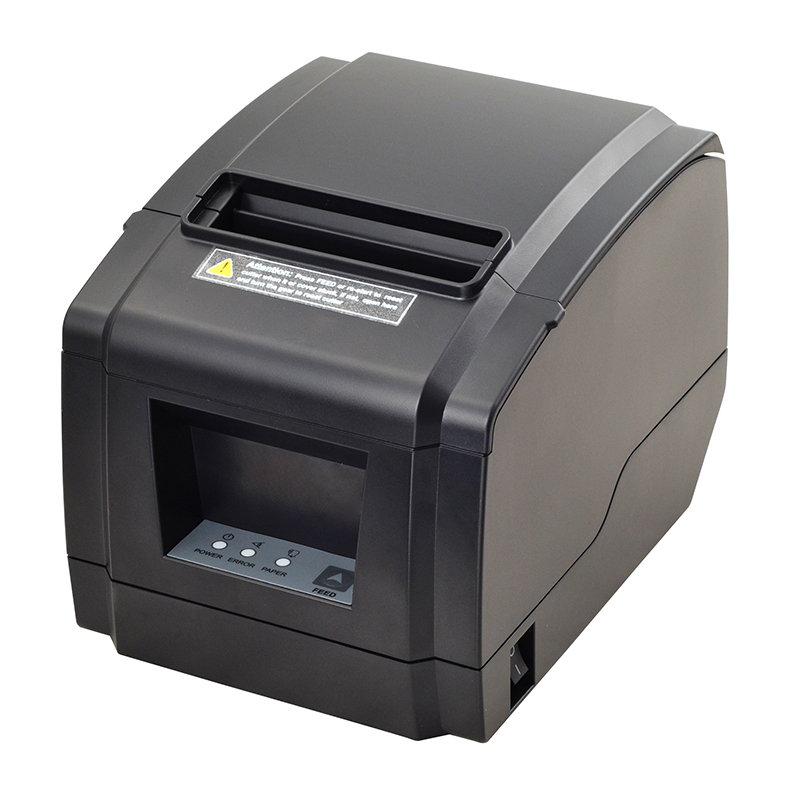

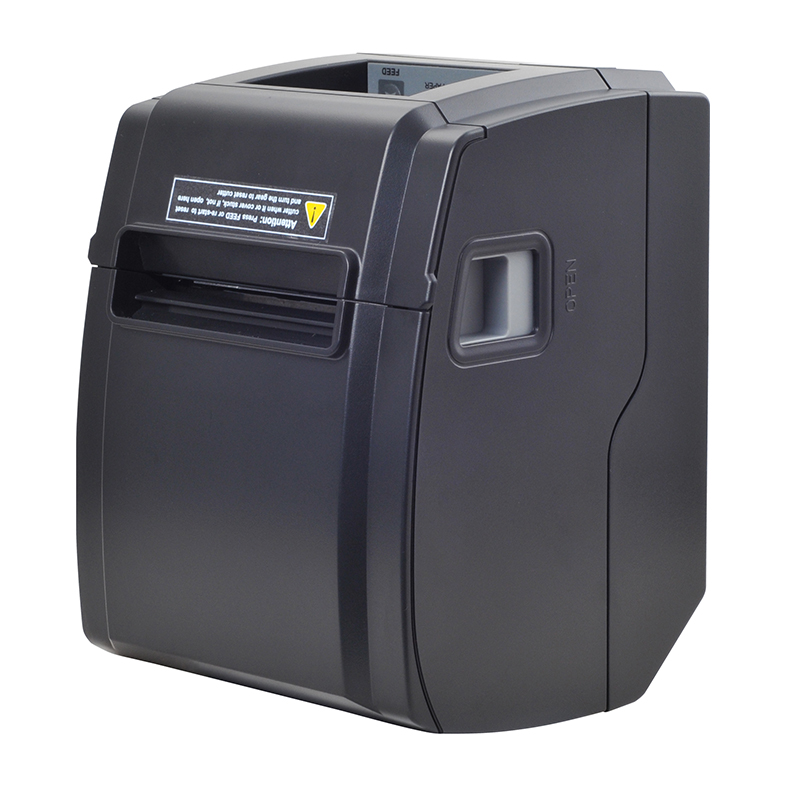

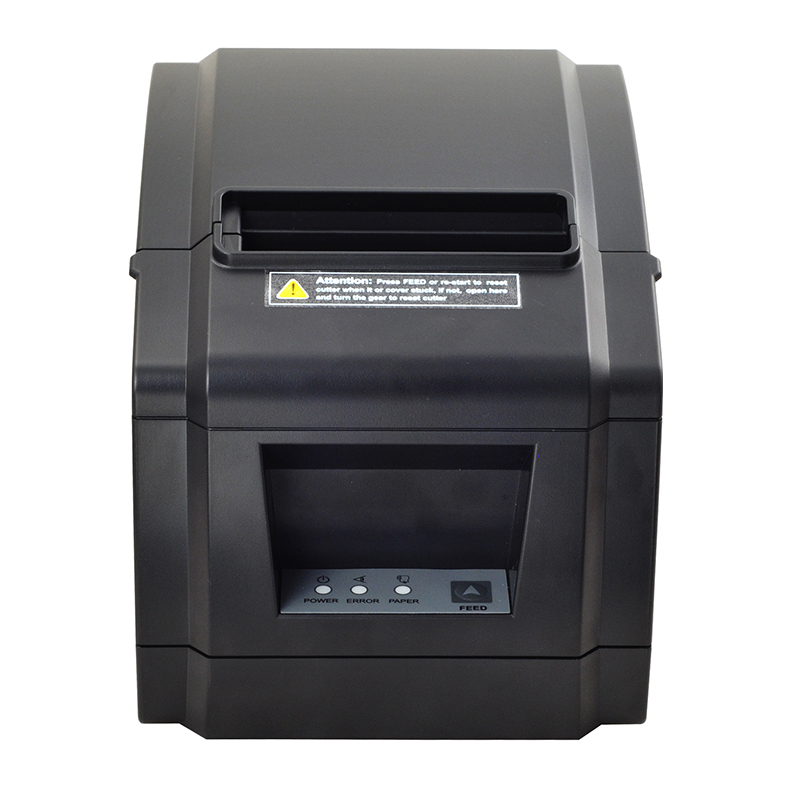

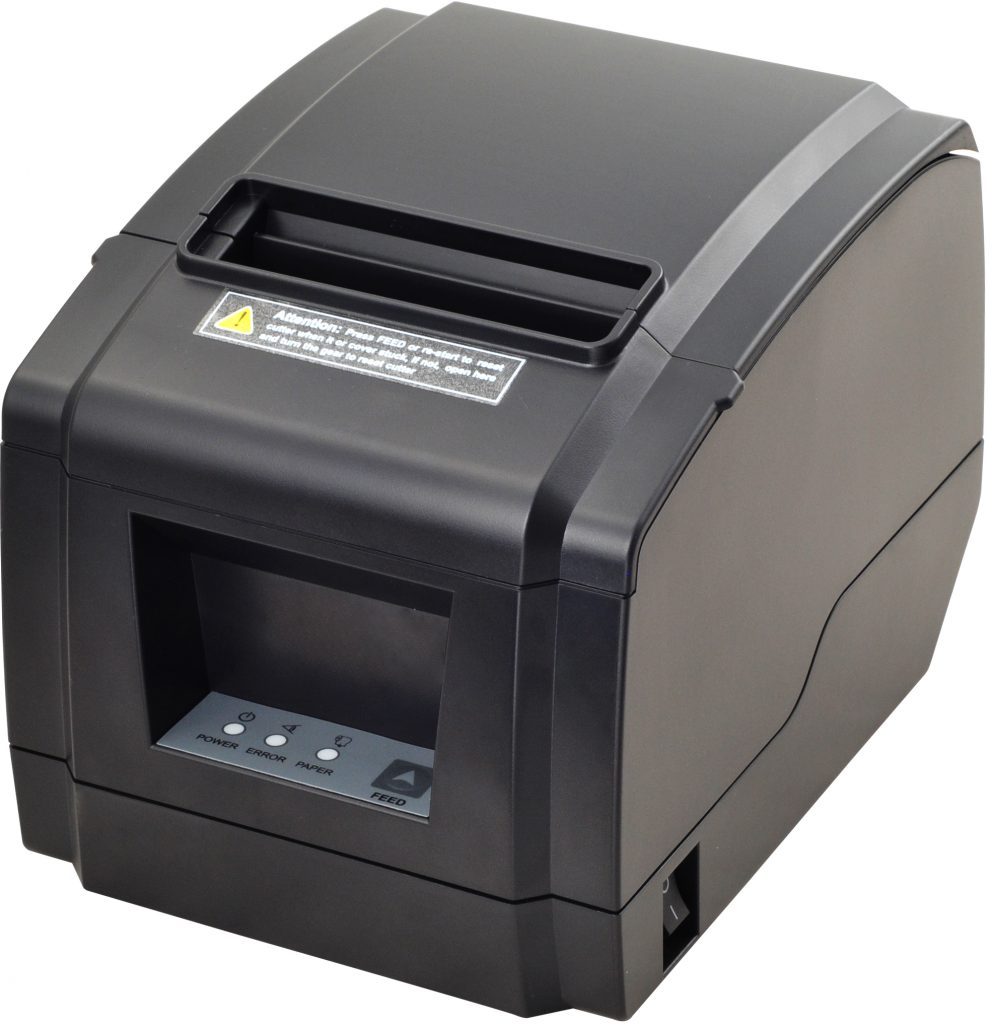

80mm Xprinter fashionable Thermal Receipt Printer M813

Source: Kunshan TES Electronic Technology Co., Ltd.2021-06-11

Clear and multifunctional printing, fashionable appearance design, moe flexible and scientific.
Small size, big performance, improve your cashiering work efficiency.

Features:

  1. High cost-effective, first choice of low budget users.
  2. Compact outline, simple fashionable appearance.
  3. Integration of motherboard, greater compatibility.
  4. High quality hardware frame, protecting the machine stability and lifetime effectively.

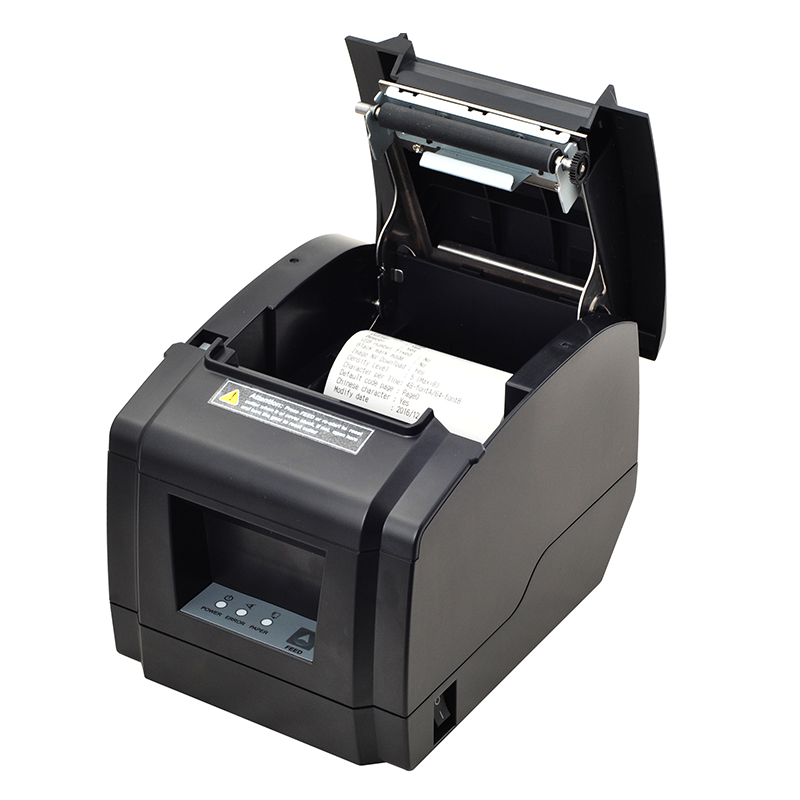

  5. Easy paper loading structure, upward paper-out design, humanized everywhere.
  6. Support positioning, ensure quick continuous printing position.

Application:

  1. medical device, warehousing, catering, express logistics, supermarkets, shopping malls.

Functional Chracteristics:

  1. Crafted and exquisite appearance
  2. Support Customized interfaces. USD , lan, USB+BLUETOOTH
  3. Humanized design, easy operation.

Print
Printing method: Direct line thermal
Print speed: 160 mm/s
Printing paper: 79.5±0.5mm x φ80mm
Printing width: 72mm width
Thickness of paper: 0.06-0.08mm
Column capacity: 576 dots/line or 512 dots/line
Chracter size: ANK, Font A: 1.5 x 3.0mm ( 12 x 24 dots)
Font B: 1.1 x 2.1 mm ( 9 x 17 dots)
simplified/traditional Chinese: 3.0 x 3.0 mm ( 24 x 24 dots)
Line space: 3.75mm ( changeable by commands)
Interface type: USB/LAN/USB+BLUETOOTH
Barcode: UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)/CODE39/ITF/CODABAR/CODE93/CODE128
Code page: PC347(Standard Europe)/Katakana/PC850(Multilingual)/PC860(Portuguese)/PC863(Canadian-French)/PC865(Nordic)/West Europe/Greek/Hebrew/East Europe/Iran/WPC1252/PC866(Cyrillic#2)/PC852/(Latin2)/PC858/IranII/Latvian/Arabic/PT151(1251)
Cutter: Partial
Input buffer: 64k bytes
NV flash buffer: 256k bytes

Power
Power adapter: Input: AC 110V/220V, 50 ~60Hz
Power source: Output: DC 24V/2.5A
Cash drawer output: DC 24V/1A

LIFETIME
Cutter life: 1 million cuts
Print head life: 100 KM

Environment Requirement
Work Environment: Temperature: 0 ~ 45℃, Humidity: 10~80% ( no condensation allowed)
Storage Environment: Temperature: -10 ~ 60℃, Humidity: 10 ~ 90%
Operating system: Windows Linux
Print commands: Compatible with ESC/POS

Physical:
Unit Weight: 1 kg
Printer Dimension: 185 x 140 x 138 mm ( Width x Depth x Height )
