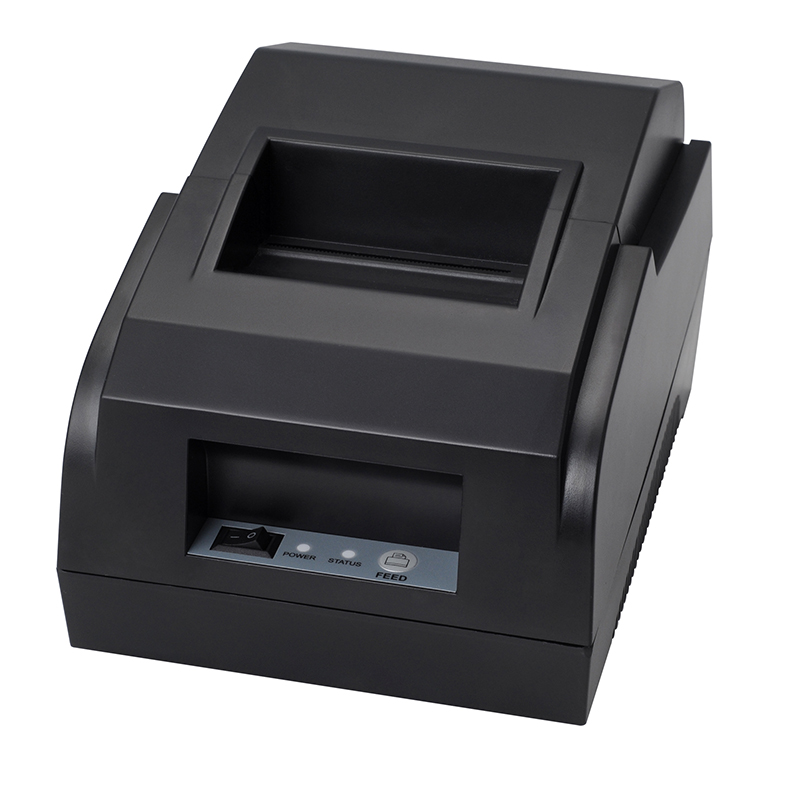

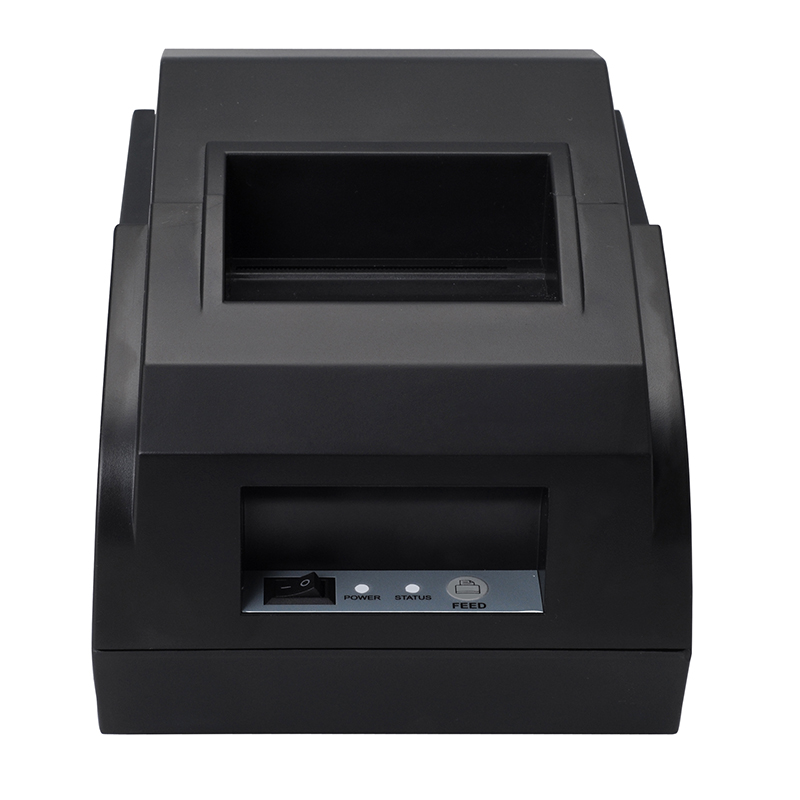

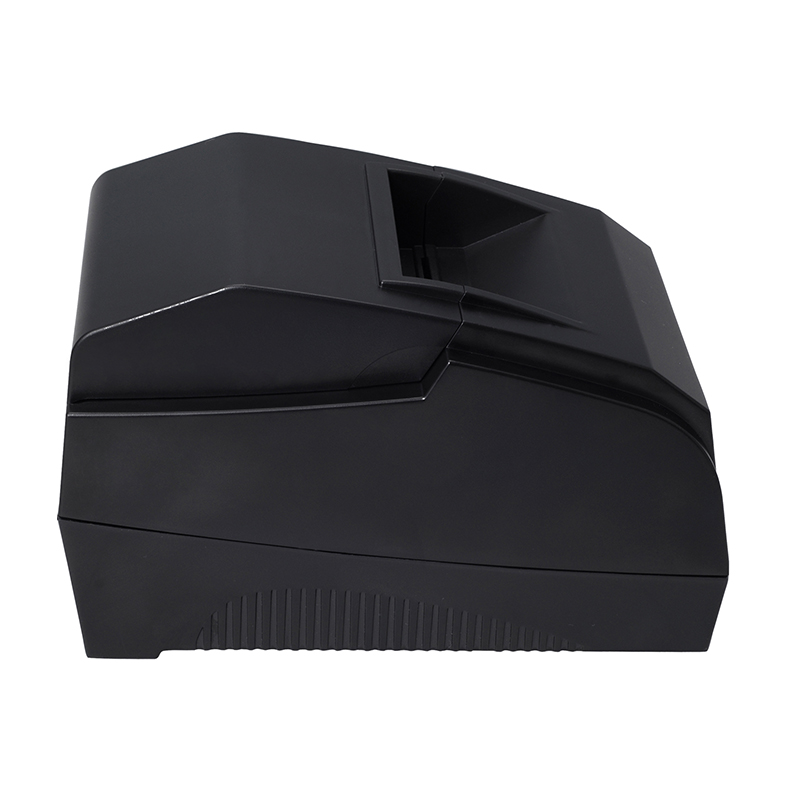

Xprinter Thermal Receipt Printer XP-58IIL

Source: Kunshan TES Electronic Technology Co., Ltd.2021-06-24

※90 mm/s low noise, High speed printing.
※Support cash drawer drive support.
※Support different kinds of 1D barcode printing.
※Support QR Code printing ( Only available when this printer comes with USB+ LAN interface)
※Support buzzer alarm prompt, support order-received notifications.
※Support density adjustment, support IPA online upgrade.
※ LAN interface support modify PI by crossovering network segments, support orders stop-loss function.
※Supporrt NVLOGO downloaded pictures printing ( Picture format is BMP)
※ Be strongly compatible with ESC/POS commands.
※ Support Simplified Chinese、traditional Chinese and 19 kinds of international languages.
※Strong printing commands of custom graphics and custom characters, ensure clear and aesthetic printing.

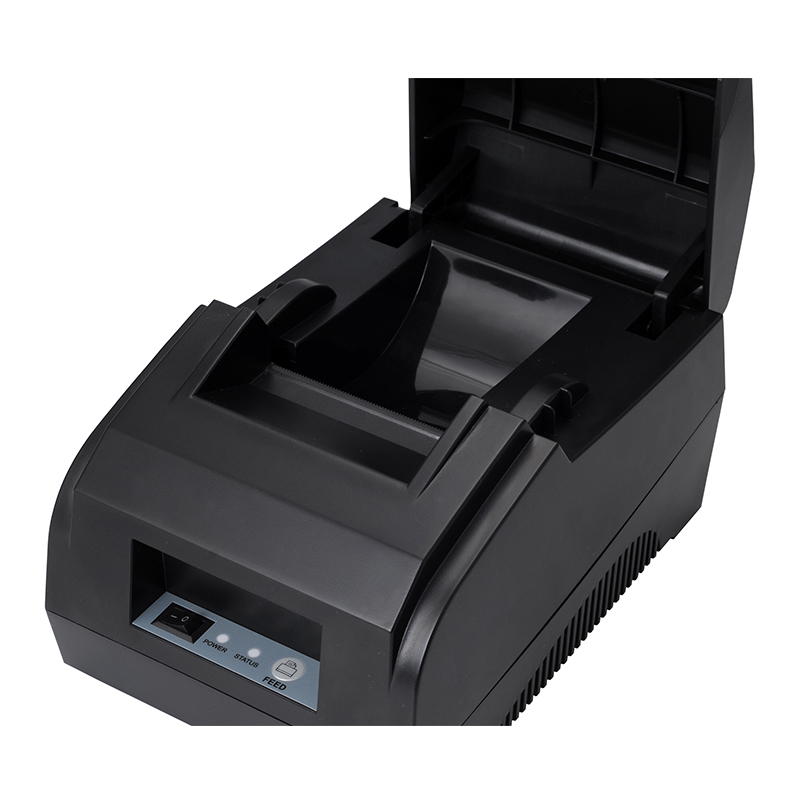

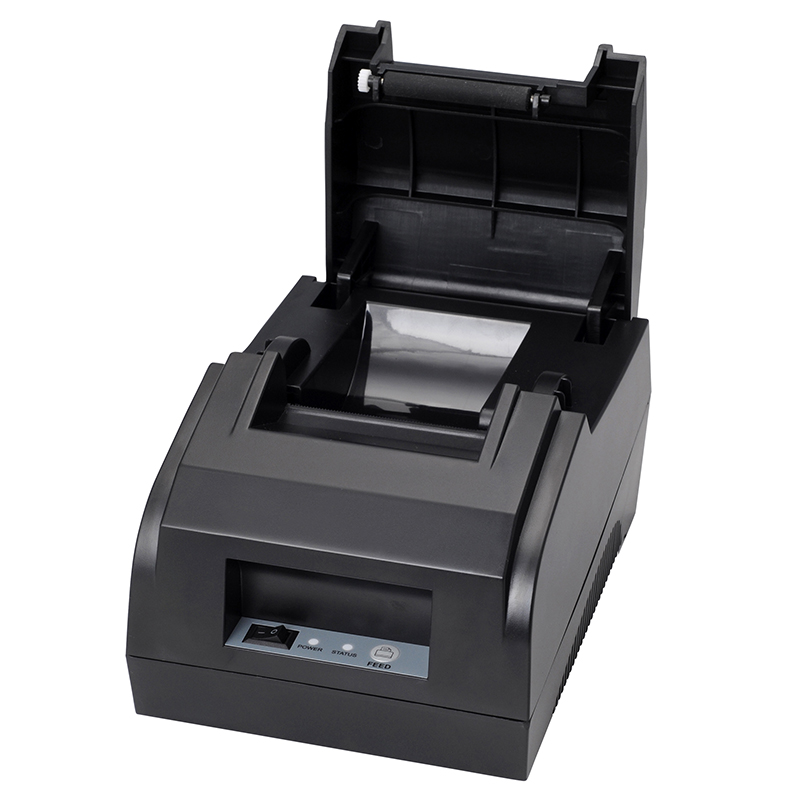

※Paper easy loading structure design, make it convenient for loading papers.

supermarket receipt printing, hospital receipt printing,bank receipt printing, telecom receipt printing, catering receipt printing.

※Model: XP-58IIL
※Printing method: Direct Line Thermal
※Printing speed: 90 mm/s
※Printing width: 48 mm
※Paper width: 58 mm
※Printing paper diameter: 50mm
※Paper thickness: 0.06 ~ 0.08mm
※Printing density: 576 dots/line or 512 dots/line
※Chracter size: ANK, Font A: 1.5 x 3.0mm
Font B: 1.1 x 2.1 mm
simplified/traditional Chinese: 3.0 x 3.0 mm
※Line space: 3.75mm ( changeable by commands)

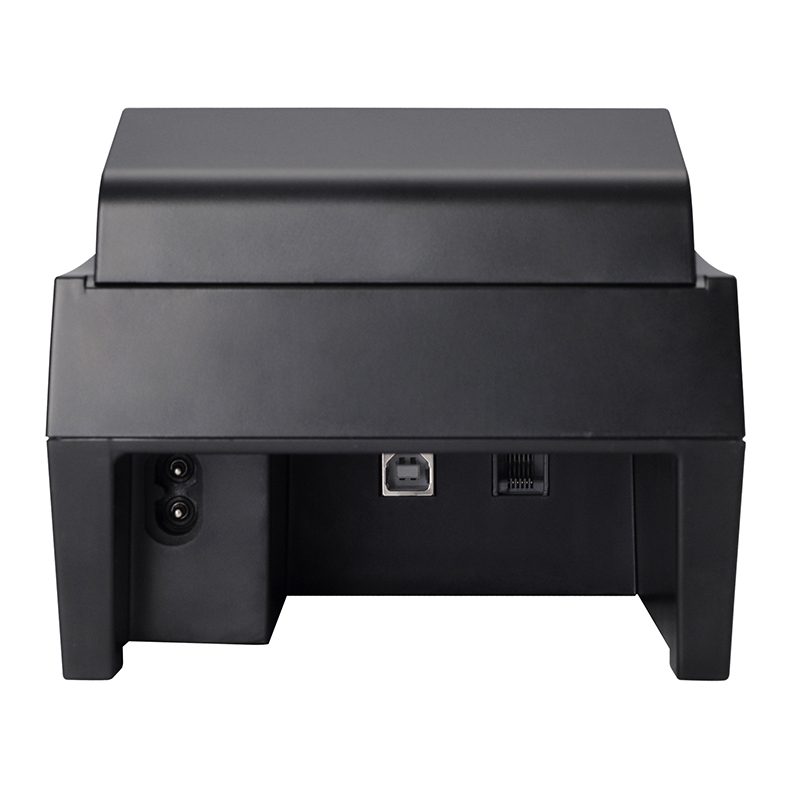

※Interface Type: Parallel/USB/USB+Bluetooth/USB+LAN


※Code page: PC347(Standard Europe)/Katakana/PC850(Multilingual)/PC860(Portuguese)/PC863(Canadian-French)/PC865(Nordic)/West Europe/Greek/Hebrew/EastEurope/Iran/WPC1252/PC866(Cyrillic#2)/PC852/(Latin2)/PC858/IranII/Latvian/Arabic/PT151(1251)

NV flash buffer: 256k bytes
Input buffer: 2048k bytes

Power adapter: Input: AC 110V/220V, 50 ~60Hz
Power source: Output: DC 24V/2.6A
Cash drawer output: DC 24V/1A

Print head life: 50 KM

Environment Requirement
Work Environment: Temperature: 0 ~ 45℃, Humidity: 10~80% ( no condensation allowed)
Storage Environment: Temperature: -10 ~ 60℃, Humidity: 10 ~ 90%

Environment Commands
Operating system: Windows / Linux
Print commands: Compatible with ESC/POS


Weight: 0.561 kg
Appearance dimension: 181mm130mm111.2mm (DepthWidthHeight)
