Features:

1. New sleek shell design.

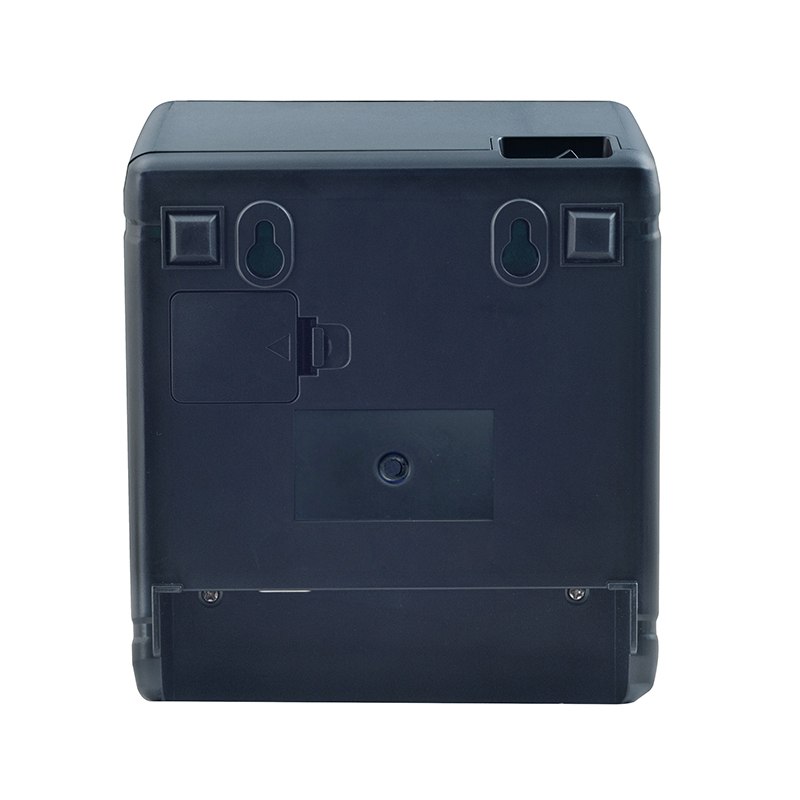

2. Wall mount capable
3. Easy drop-in paper loading
4. Intelligent cutter control system
5. Order comes remind

Specifications:

1. Model: XP-S200M
2. Printing method: Direct thermal
3. Paper width: 79.5±0.5mm
4. Print width: 80mm
5. Column capacity: 576 dots/line ( adjustable by command)
6. Printing speed: 200 mm/s Max.
7. Interface: USB ( Optional: Bluetooth/Wifi), Lan/USB + Serial/USB+ Lan(Optional U+L+Wifi/U+L+Bluetooth(260mm/s)
8. Line spacing: 3.75mm ( Adjustable by commands)
9. Column number: 80mm paper: Font A – 42 columns or 48 columns/Font B-56 columns or 64 columns/ Chinese, traditional Chinese -21 columns or 24 columns
10. Character size: ANK, Font A: 1.5 x 3.0mm (12 x 24 dots) Font B: 1.1 x 2.1mm ( 9x 17 dots) Chinese, traditional Chinese: 3.0 x3.0 mm ( 24×24 dots)

Cutter:

1. Auto cutter: Partial

Barcode Character:

1. Extension character sheet: PC347(Standard Europe)/Katakana/PC850(Multilingual)/PC860(Portuguese)/PC863(Canadian-French)/PC865(Nordic)/West Europe/Greek/Hebrew/East Europe/Iran/WPC1252/PC866(Cyrillic#2)/PC852(Latin2)/PC858/IranII/Latvian/Arabic/PT151(1251)
2. Barcode types: UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)/CODE39/ITF/CODABAR/CODE93/CODE128
3. 2D Barcode: QR Code/PDF417(Unavailable in interfaces: USB+Serial/USB+WiFi/USB+Bluetooth)
4. Input buffer: 128 Kbytes
5. NV Flash: 256 Kbytes

Power:

1. Power adapter: Input: AC 100 ~ 240V/50 ~ 60 Hz; Output: DC 24V/2.5A
2. Printer input: DC 24V/2.5A
3. Cash drawer: DC 24V/1A

Physical characteristics:

1. Weight: 0.97 kg
2. Dimensions: 180 x 140 x 134.1mm ( D x W x H)

Environmental equirements:

1. Operation environment: Temperature(0 ~ 45℃） humidity ( 10 ~ 80%)
2. Storage environment: Temperature ( -10 ~ 60℃）humidity ( 10 ~ 90%)

Reliability:

1. Cutter life: 1.5 million cuts
2. Printer head life: 150 km

Software:

1. Emulation: ESC/POS
2. Driver: Windows/JPOS/OPOS/Linux/Android/Mac
3. Utility: Windows&Linux test Utility
4. SDK: iOS/Android/Windows
