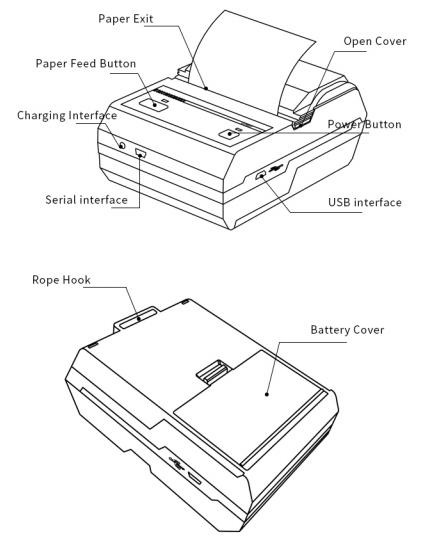

2. Detailed description:

3. Install paper:

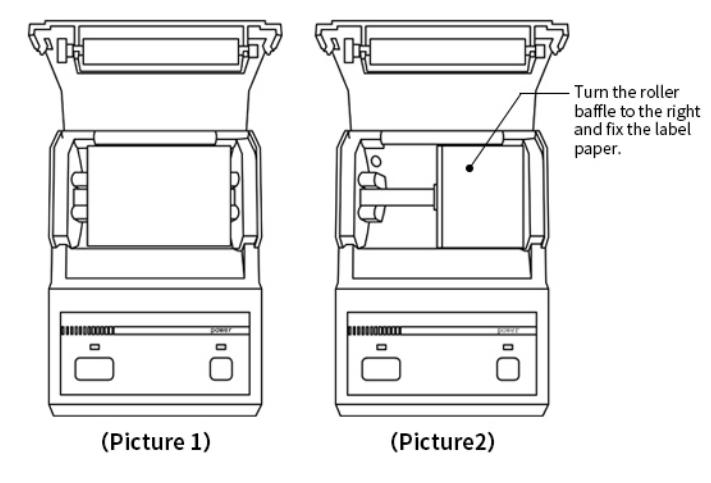

50mm width label paper, no need roller, can be placed label paper directly(Shown as picture 1)

Label’s width less than 50mm, need to install adjustable roller, the label roll on the right, turn the roller baffle to the right to fix the label ( Shown as picture 2)

Paper Feeding Test

① Put the paper horizontally into the printer and click on the switch button

②Long press “ Paper Feeding Button” for 5 seconds. And then, it will feed 5-6 labels.

③Press “ Paper Feeding Button” shortly, you can print after coming out one Label ( Shown as picture 3)

4. Connect Bluetooth:

First, turn on the Bluetooth on your phone setting, Then, enter” Label Printer” App. Click oon ” Unconnected Bluetooth” ( The first search may take longer)

Search the Bluetooth, select the right one and pair. ( The PIN is 0000). The signal light shows blue color. Successful.

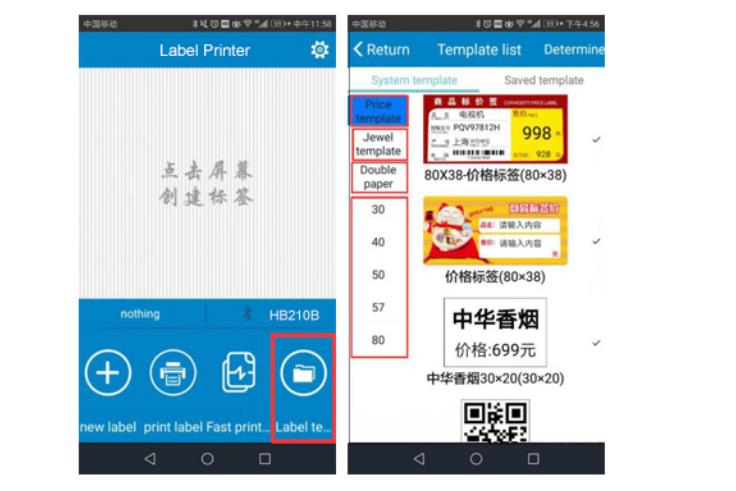

5. THE SOFTWARE

Create New Label ( Suitable for ordinary rectangle or square labels)

Suitable for Customized Labels or Special-shaped Labels.

6. EDIT THE LABEL

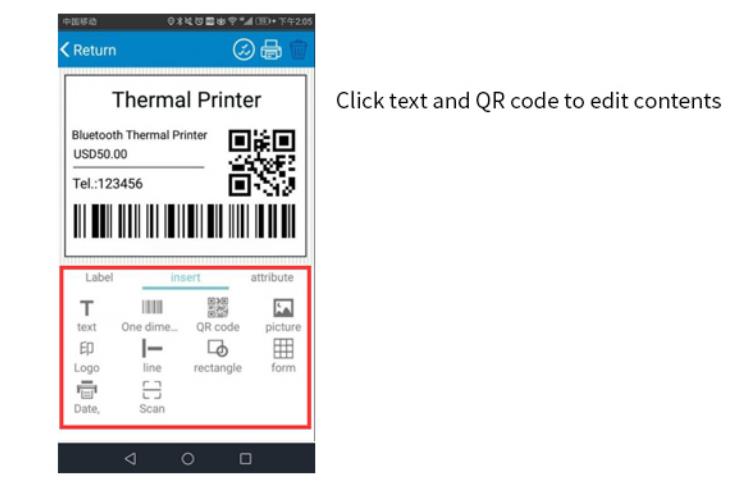

Edit Label Contents

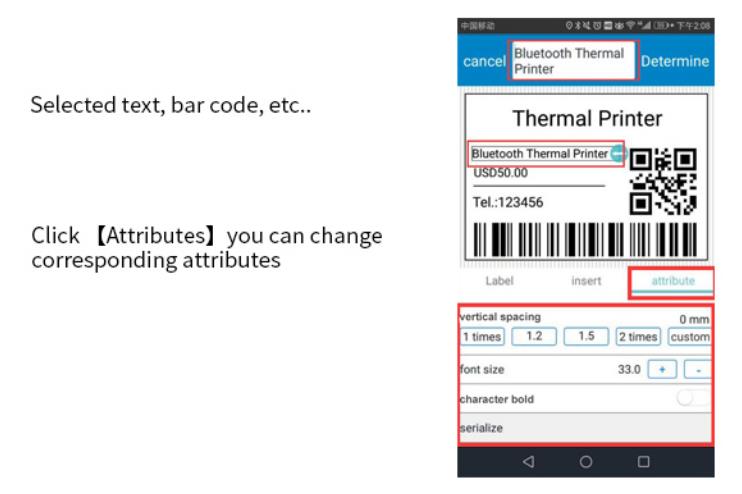

Adjust Attributes

7. SERIALIZED PRINT

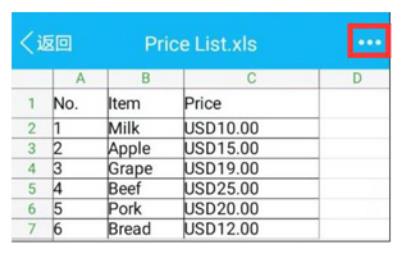

Import Excel

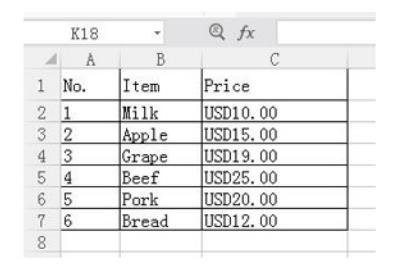

① Create a new EXCEL form on your computer

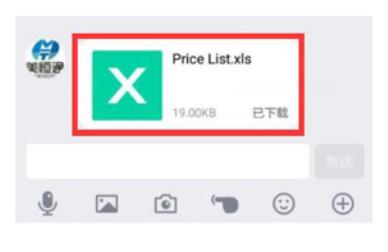

② Send it to your phone

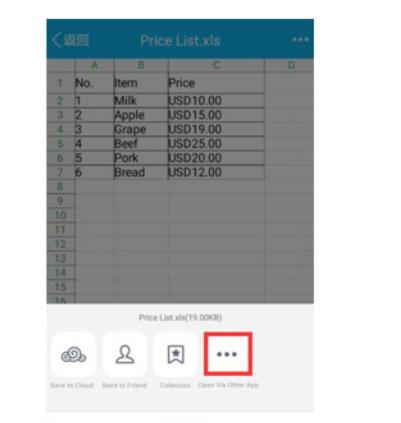

③ Open EXCEL file, click on upper right corner icon.

④ Open via other App

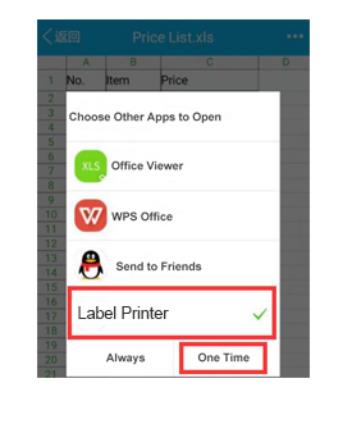

⑤ Choose our software MHTLabel to open

8. SERIALIZED PRINT

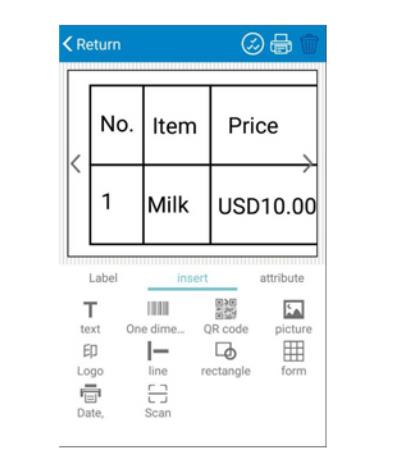

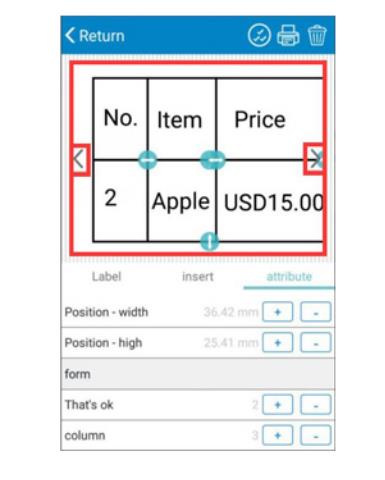

⑥ Create new label, insert form and type the characters

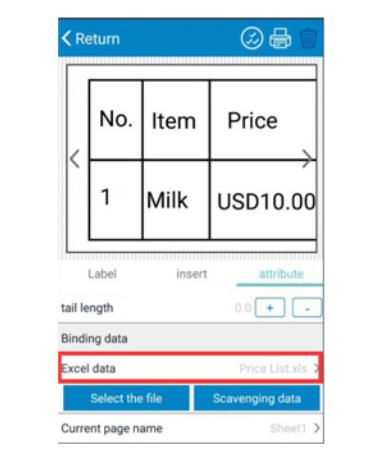

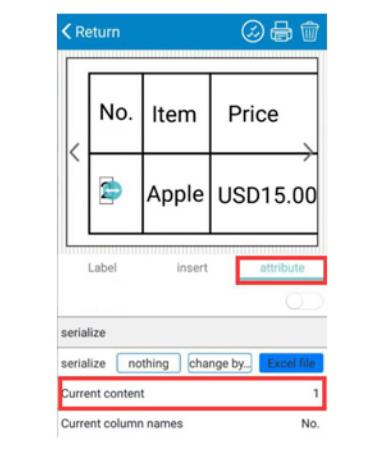

⑦ Select Excel Data on Attribute

⑧ Select Current Content on Excel File

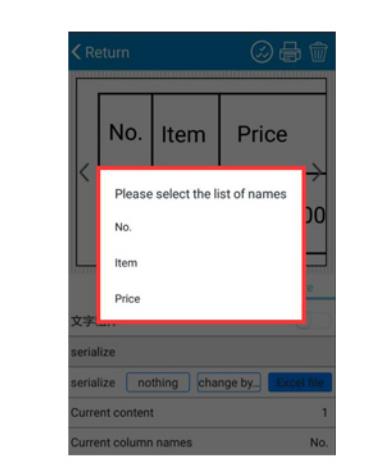

⑨ Select the list of names

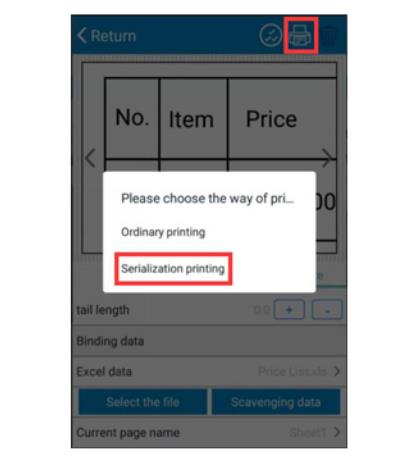

9. SERIALIZED PRINT

⑩ Complete edit label, click the arrow to change the contents

⑪ Print label

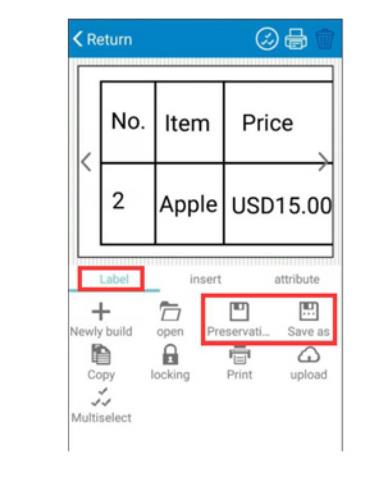

⑫ After completing edit, Preservative or Save as file on Label

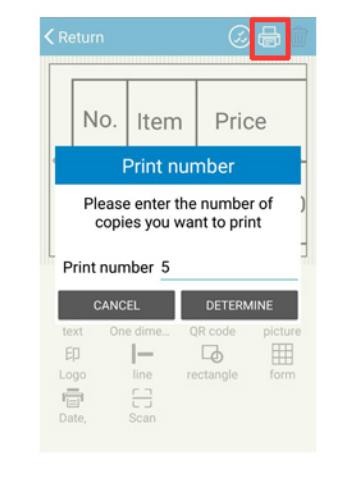

⑬ Print Number Setting

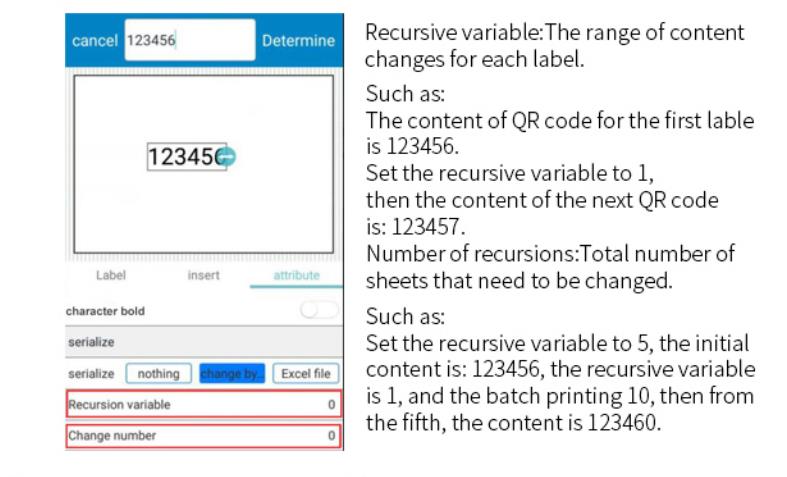

10. SERIALIZATION ” GRADIENT”

① ” Gradient ” serialization only supports numeric types of content

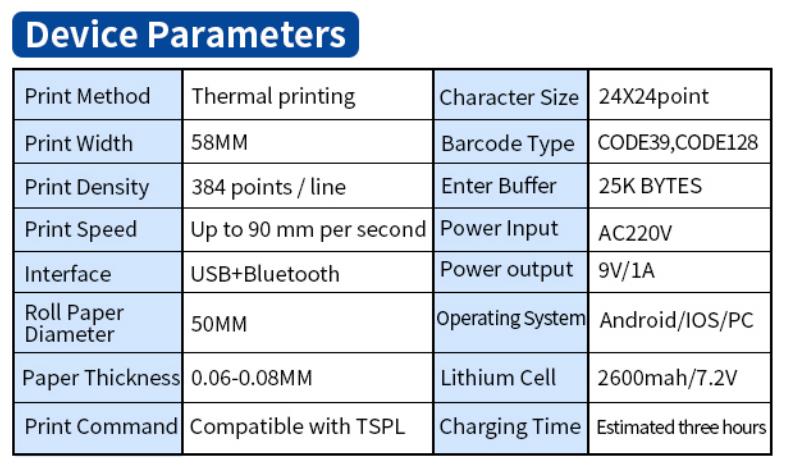

11. THE EQUIPMENT PARAMETERS

12. DAILY MAINTENANCE

Maintenance and Cleaning

Daily Maintenance of Printer

① Clean the external and paper bin of the pinter: Wipe the surface of the printer and the inside of the paper warehouse gently using a wrung wet towel. Note that the wet towel must be fully wrung dry

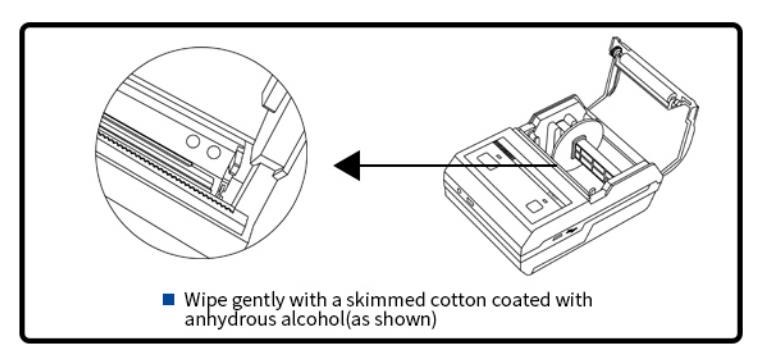

② Clean the printing machine core: Please make sure to clean the printing machine core regularly, especially when the printing quality is declining. The cleaning method is as follows:

③ If water is found inside the printer, turn it off immediately and remove the battery and dry the printer naturally.

④ If you do not use the printer for a long time, please remove the battery and store it separately.

Daily Maintenance of Printer

① Keep the product at room temperature before opening

② When sticking to consumables, clean up the surface of the adhesive

13. CASE DEMONSTRATION
